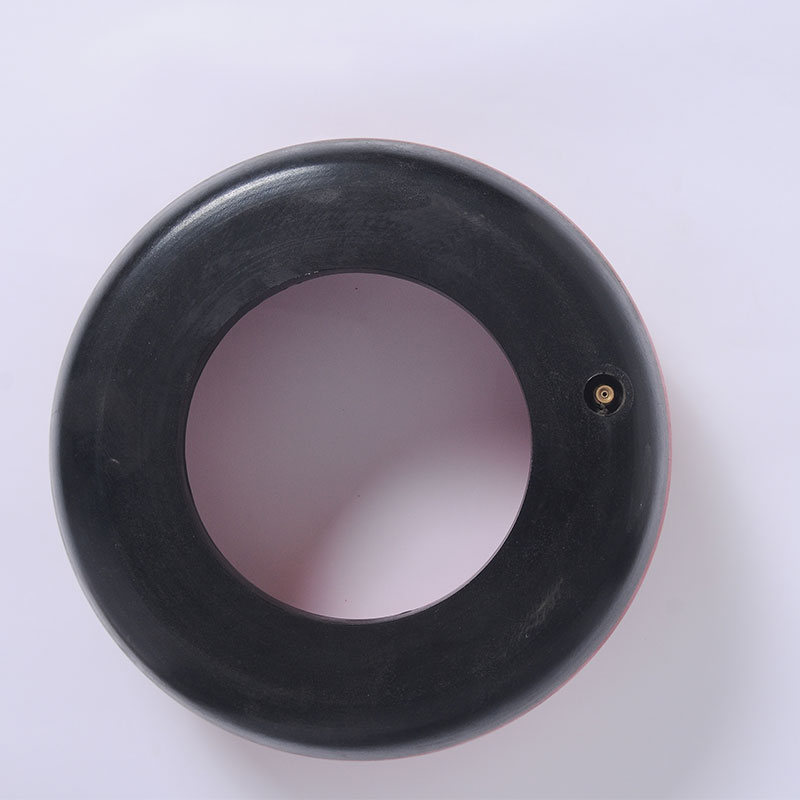

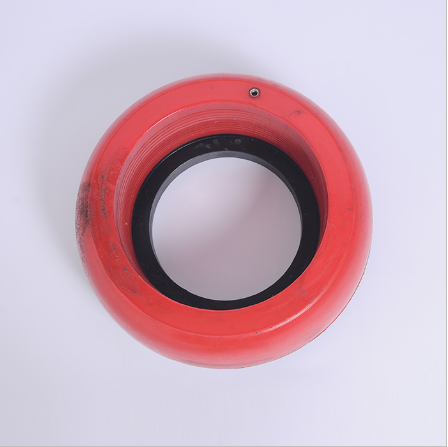

air operated thread protector:

air-operated thread protectors offer safe, reliable casing and tubing pin-end protection. The working principle of the air-operated thread protectors is based on pressurization by rig air (72 to 130 psi, or 496 to 896 kPa), ensuring easy installation and reliable protection for all API standard and premium threads.

Features, Advantages and Benefits

These durable protectors provide a 360° grip with greater, evenly divided holding power. Durability is enhanced because the outside of the protectors does not change in any way; only the inside inflates to provide a better grip on the pin.

The absence of moving parts, metal clamping bars, or other mechanisms provides a long and virtually maintenancefree life cycle, reducing downtime.

The bottom of each protector contains a rugged buffer, and only the inside of the protector inflates. These features afford excellent protection of pin seal surface.

Rugged construction makes these protectors resistant to high temperatures and rough handling for a longer life cycle.

Pressurization by air facilitates installation and release for operational efficienc

 instructions

1. Connect the air charging pipeline and hand-held air charging gun based on the air pressurization of the drilling rig, and make the rubber part of the air gun fit with the end face of the air inlet.

2. While pressing down firmly, hold the air charging gun and observe the indication of the air gauge.

3. When the rated pressure is reached, the pin end of casing tubing is gripped and protected.

4. The protection operation of releasing the casing tubing pin end is very simple, even without using any tools, just press the air filling hole, and the release of the casing tubing pin end is completed after the air is released
